CHINA YIHE AXLES Co., Ltd was established in 1994, located in Zhucheng city of Shandong province. Now, YIHE is becoming one of the biggest axle production bases with the annual capacity of 1.2 million sets axles. YIHE owns 5 production bases, located in Zhucheng of Shandong and Changsha of Hu’nan. Our company has 2500 employees and mainly produces Truck front axles, truck seats, welding structure parts, independent suspension axles, U bolts, agricultural drive axles.
Equipments
Annual Production Capacity
Technical Center

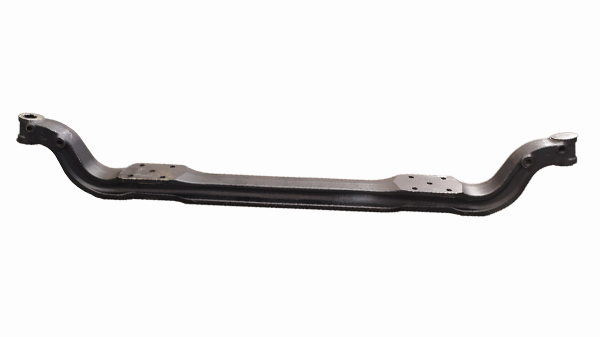

Material:45#
Rated load:1.5T
Distance between kingpins:1354
Distance between leaf springs:710
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:64+8
Material:45#
Tonnage:2.2T
Distance between kingpins:1359
Distance between leaf springs:750
Kingpin diameter:φ30
Kingpin Inclination:7.5°
Drop:64+5
Material:45#
Tonnage:2.5T
Distance between kingpins:1472.4
Distance between leaf springs:760
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:70+34
Material:42CrMo
Tonnage:7.5T
Distance between kingpins:1767
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:3°
Drop:89
Material:42CrMo
Tonnage:5.5T
Distance between kingpins:1853.3
Distance between leaf springs:850
Kingpin diameter:φ47
Kingpin Inclination:7°
Drop:φ16
Material:42CrMo
Tonnage:4.5~6.1T
Distance between kingpins:1820
Distance between leaf springs:850
Kingpin diameter:φ45
Kingpin Inclination:6.5°
Drop:φ14
The front axle and the frame adopt an integrated structure, and the header can adopt single cylinder or double cylinder.
The upper frame and the front axle have two structures.(Welding in one piece or assembling separately)
The front axle closed side by structure ; The rear axle fixed seat with casting structure.
Turn to use welding body for connection,The steering shaft sleeve is made of special materials,Durable wear resistance,The safety factor is improved.
Turn to use welding body for connection,The steering shaft sleeve is made of special materials,Durable wear resistance,The safety factor is improved.
Turn to use welding body for connection,The steering shaft sleeve is made of special materials,Durable wear resistance,The safety factor is improved.

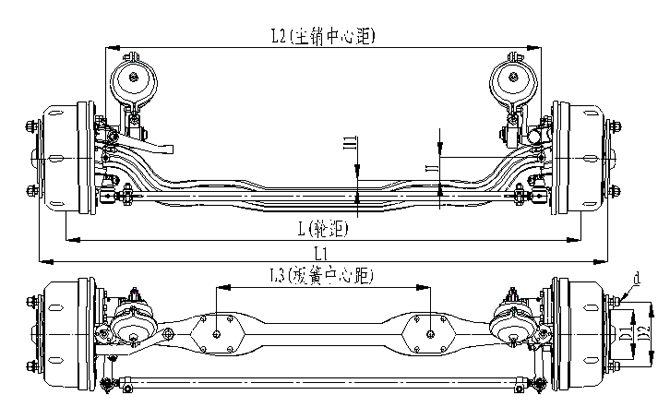

Material:45
Tonnage:1T
Distance between kingpins:1165~1360
Distance between leaf springs:650~780
Kingpin diameter:φ25
Kingpin Inclination:7.5°
Drop:23~60
Brake specification:Φ280~320
Rim mounting face
distance:1215~1600
Material:40Cr
Tonnage:3.5 T
Distance between kingpins:1630
Distance between leaf springs:800
Kingpin diameter:φ32
Kingpin Inclination:8°
Drop:95
Brake specification:Φ320~360
Rim mounting face distance:1900~2224
Material:45
Tonnage:4 T
Distance between kingpins:1727
Distance between leaf springs:851~890
Kingpin diameter:φ38
Kingpin Inclination:7°
Drop:74
Brake specification:Φ400
Rim mounting face distance:2204
Material : 42CrMo
Rated load : 2.2T
Distance between kingpins:1490
Distance between leaf springs:850
Kingpin diameter:φ35
Kingpin Inclination:7°
Drop:89
Brake specification:Φ250*45
Rim mounting face distance:1980
Material : 42CrMo
Rated load : 6.5T
Distance between kingpins:1800.8
Distance between leaf springs:850
Kingpin diameter:φ52
Kingpin Inclination:7°
Drop:89
Brake specification:Φ430*45
Rim mounting face distance:2410.7
Material:42CrMo
Rated load:9T
Distance between kingpins:1770
Distance between leaf springs:850
Kingpin diameter:φ52
Kingpin Inclination:6°
Drop:89
Brake specification:Φ420*180
Rim mounting face distance:2372
Provide CustomizedForms
Analyze CustomerNeeds
Design TeamDiscussion
Drawing of ContourParameters
Drawing Confirmation orCommunication Modification
Custom SampleProduction
Sample LoadingRoad Test
Mass Production

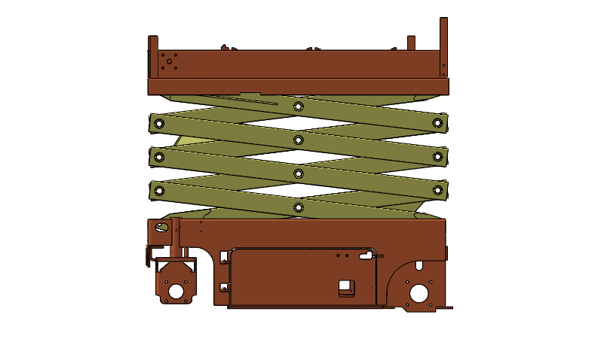

Customer Name:Lingong Group Jinan Heavy Machinery Customer Products:Aerial Work Platforms Welded structural ...
The largest axle manufacturer in China, an excellent supplier of China's mainstream automobile manufacturers, ...
Customer Name:FOTON Customer Products:OLLIN Application products:truck steering axle. The largest axle manu...

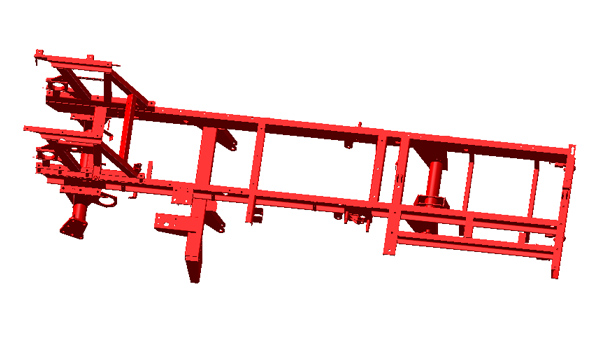

Customer Name:Boshiran Customer Products:cotton picker Application products:Welded structural parts of cott...
From 1994, we began to produce welded structural parts of corn harvester chassis, serving the largest harveste...
In 2011, Yihe was approved by the provincial science and Technology Department of Shandong Province to construct “ Shandong Province Vehicle Axles Engineering Research center ”. This engineering center has 7 professional engineering centers and more than 190 engineers. It has won more than 129 national patented technologies for axle production.
Introduce more than 500 sets of advanced, precise and topequipments, has three high efficient welding assembly lines, four light duty truck axle assembly lines, two medium and heavyduty truck axle assembly line, and two high level heavy truck axle assembly lines, with the annual production capacity of 1.2 million sets.
Invested 20 million to build a powder spraying line, which enhanced the product's appearance weather resistance, brightness and hardness, and the salt spray test reached 1,000 hours. Adhesion reaches the highest standard of level zero.
Established the Axle Parts Inspection Department to fully monitor the quality of raw materials 3 automated welding production lines with high degree of automation and guaranteed quality. The company has passed IATF16949 quality system certification, EU TUV certification, CWB certification.
